Waikato



Multi-Phase Pulsation Controller


So far, we have not seen a lot of Waikato equipment in for repair  ...  so the main devices we can report on here  ...  are the Muti-Phase Pulsation Controller  ...  or Pulseriter

...  and the Xtra Delay Automatic Cup Remover Boards  further down the page.


The purpose of the Pulseriter is to stagger the timing between all the pulsators  ...  to even out the demand on the vacuum supply.

One of it’s features is that when set up  ...  it measures the current flow to each bank of pulsators  ...  and memorises the reading.

From then on  ...  each time it is switched on  ...  it measures the current flow again and compares it to what is stored in memory.

If any of the readings are different  ...  an indicator light comes on  ...  and the faulty pulsator chain is identified on the display. The device wont run until you deal with the problem  ...  or isolate the faulty line.

It is then a matter of finding the cause  ...  which is usually either wiring to one or more pulsators  ...  or a faulty pulsator.

Obviously the machine itself can malfunction and give misleading indications too  ...  so that is where we can help.







Xtra Delay Cup Remover Boards



These boards are usually mounted on top of the post which holds the cup removing ram, so are well out of the way of the usual overspray and mess which can cause problems for a lot of systems.

They are controlled by a Master Unit which sets the parameters for all of the boards in the dairy  ...  so can be adjusted readily from just one spot, changing all units at once.

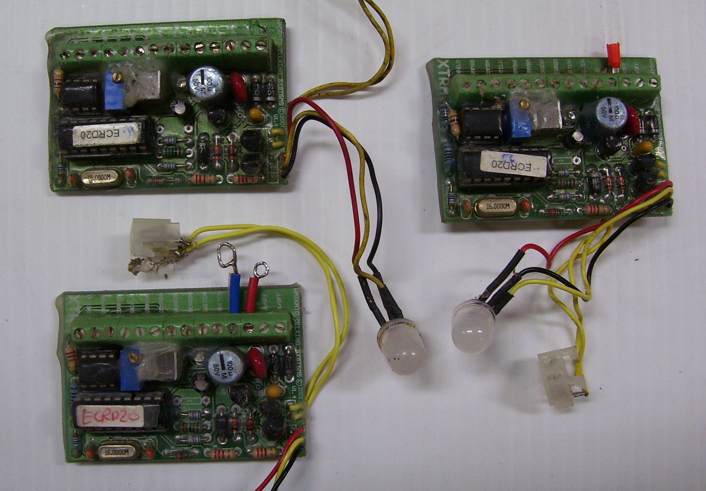

        3 x Waikato Xtra Delay Automatic Cup Remover Boards



They are well protected from moisture with a thick coating of silicon  ...  and with a pluggable microcontroller IC can be updated if necessay

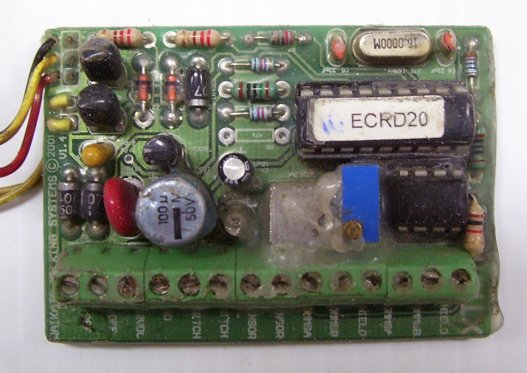

      Waikato Xtra Delay Automatic Cup Remover Board









Please contact us if you have any questions or need to know more.






Or check out these links to Waikato’s main NZ website.



Waikato Products

Waikato Pulsation

Waikato Electronic Cup Removers



...  or to

Daviesway  ...  the Australian distributor of Waikato.







Waikato-Multiphase-System


Multi-Phase Pulsation Controller




Waikato-Mutiphase-System-Dismantled


Opened up  ...

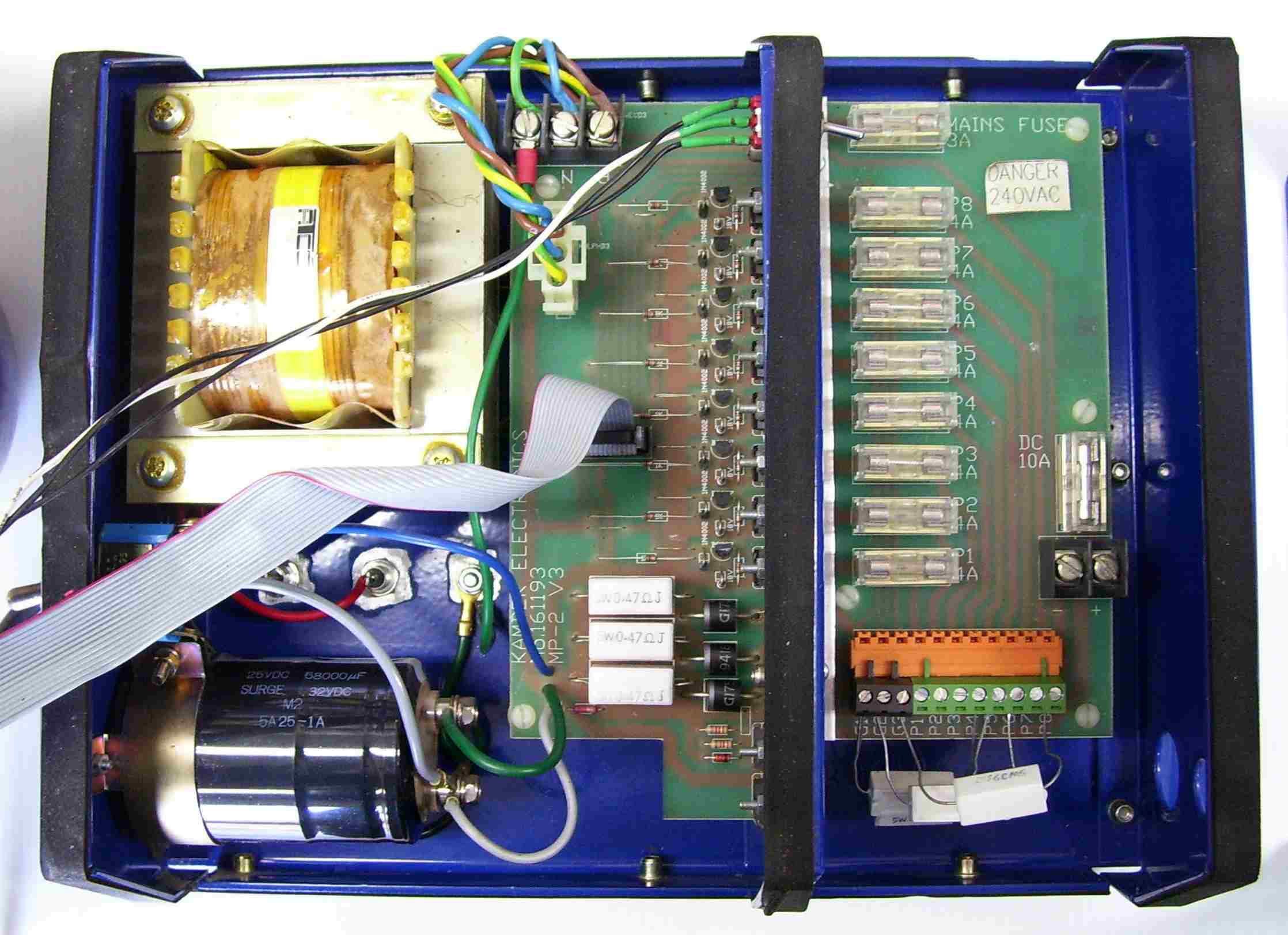

Waikato-Mutiphase-Output-PCB

Closer view  ...

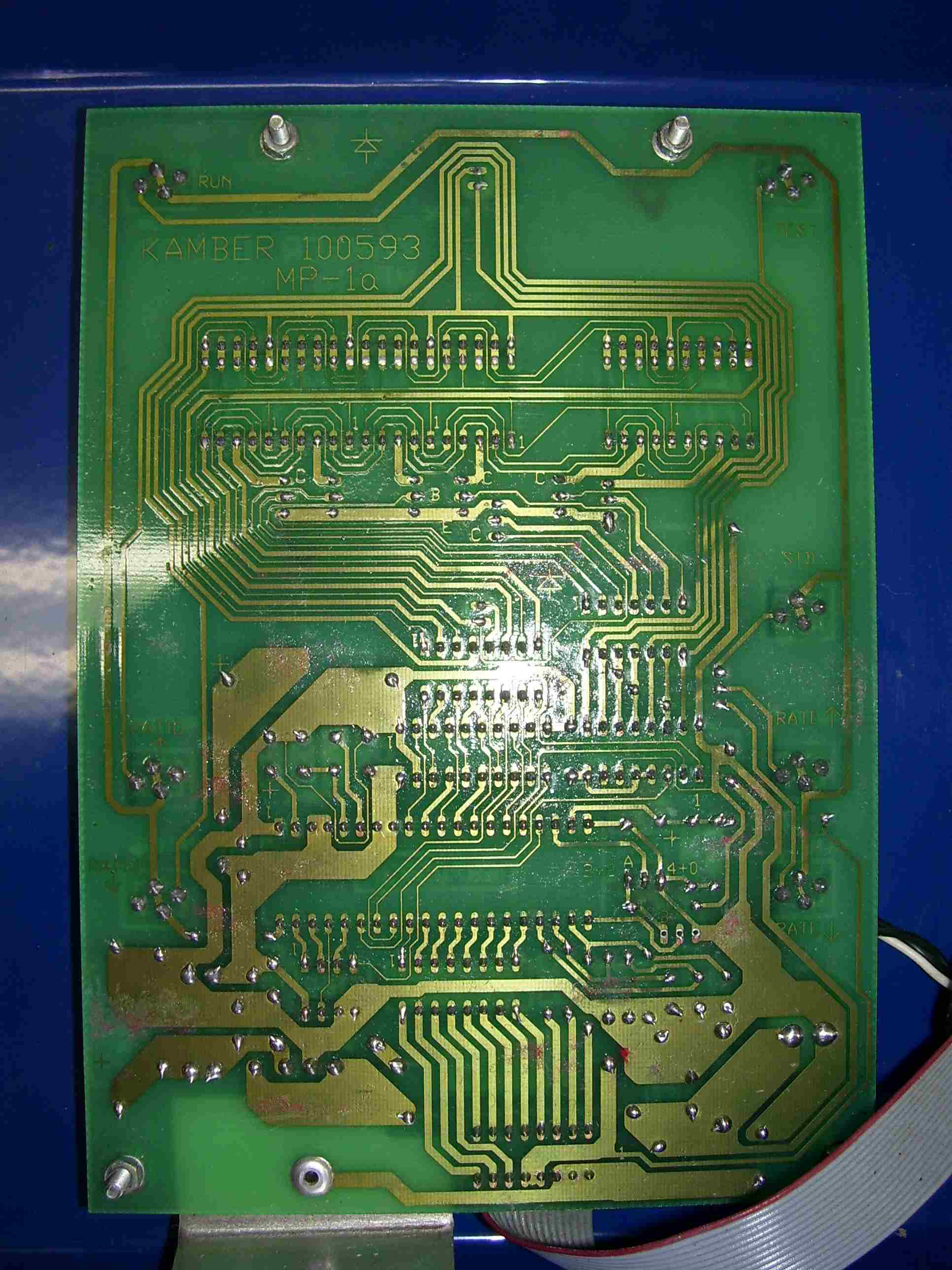

Waikato-MultiPhase-Control-PCB

Rear of control panel

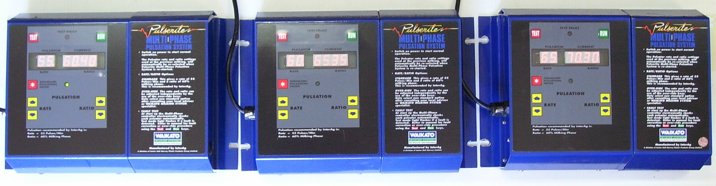

Another batch of 3 Pulseriters

Another batch of pulseriters
